Transfer Line and Destacker

　Servo Transfer Line

　　　1. Small Sized Transfer Line

　　　2. Midium Sized Transfer Line

　　　3. Large Sized Transfer Line


　Servo Transfer Robot

　　　For 4 sets of Double Crank Stamping Press

　　　For 5 sets of Straight Sided Stamping Press　

　　　For 6 sets of Straight Sided Stamping Press

　　　For 9 sets of Stamping Press

　　　Built-In Design

　　　　For Double Crank　
　　　　For Single Crank

　　　For 6 sets of Single Crank Stamping Press with Turn Over
 		  Transfer Line and Destacker
 Transfer Robot
　　　1. Small Sized Transfer Line
Transfer Line  Small Sized Transfer Line

　There are 2 designｓ, servo and TPO driven.
　Feeding is 2 and 3 dimensions.
　


 　　　2. Midium Sized Transfer Line
 Transfer Line Midium Sized Transfer Line

　5 Axis Control: 3 demension Feeder
　3 Axis Control: 3 demension Feeder


　　　 3. Large Sized Transfer Line
 Transfer Line Large Sized Transfer Line

　This transfer feeder is for larged sized stamping press.
　This line is able to equipped with destack feeder and coil line.


 For 4 sets of Double Crank Stamping Press

Transfer Robot equipped with Destacker

Main Specifications：
Model   SHBS3500-60-04
 1. Transfer Stroke (mm)  3500
 2. Lift Stroke (mm)  Max.60
 3. Work Size (mm)  Max.1300x500
   Min. 650x250
 4. Work Weight (kgf)  Max.5.0
 5. Pick Up Method  Vacuum and Magnet
 6. No. of Stamping Press  Double Crunk　4 sets
 7. Productivity at 30SPM  11 Pieces/Minute






 For 5 sets of Straight Sided Stamping Press


Main Specifications：
Model   SHBS4200-150-05
 1. Transfer Stroke (mm)  4200
 2. Lift Stroke (mm) Max.150
 3. Work Size (mm)  Max.1800x1200
   Min. 900x600
 4. Work Weight (kgf)  Max.8.0
 5. Pick Up Method  Vacuum
 6. No. of Stamping Press 5 sets




For 6 sets of Straight Sided Stamping Press



    Main Specifications：
Model   SHBS2850-120-06
 1. Transfer Stroke (mm)  2850 Probramable
 2. Lift Stroke (mm) Max.120
 3. Work Size (mm)  Max.1274x329
   Min. 674x329
 4. Work Weight (kgf)  Max.11.0
 5. Pick Up Method  Vacuum and Magnet
 6. No. of Stamping Press 6 sets


For 9 sets of Stamping Press


Main Specifications：
Model   SHBS800-60-04
 1. Transfer Stroke (mm)  600
 2. Lift Stroke (mm)  Max.25
 3. Work Size (mm)  Max.219x174
   Min. 110x90
 4. Work Weight (kgf)  Max.1.0
 5. Pick Up Method  Vacuum
 6. No. of Stamping Press  Single Crunk　8 sets
 7. Productivity at 60SPM  21 Pieces/Minute



  Built-In Design 　 From Single Crank 80tons to Double Crank 200tons

Features:
　　1. You can select transfer stroke based on No. of process.
　　2. Installation space is saved as built in design.




 　 　　　　

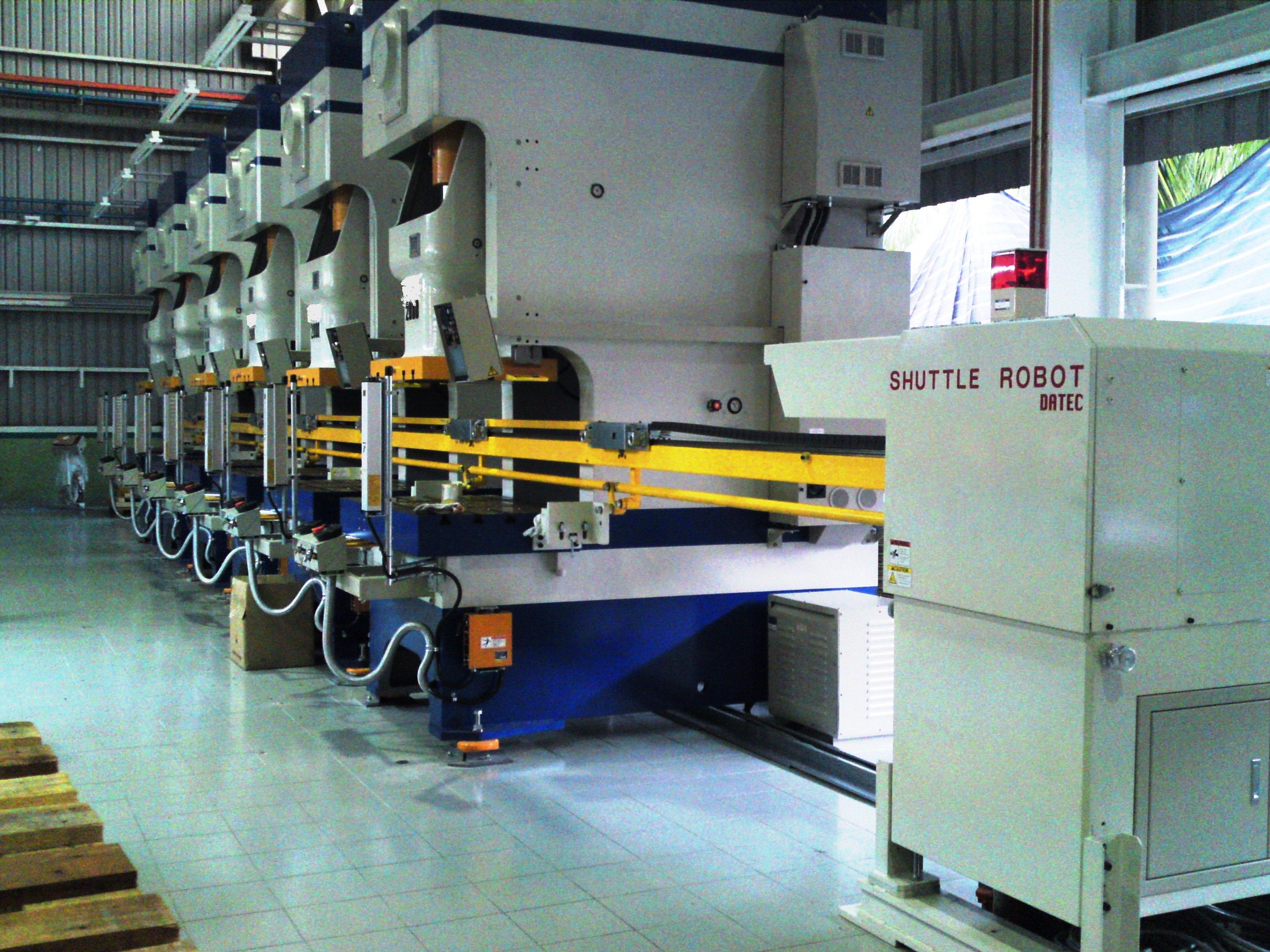

For 6 sets of Single Crank Stamping Press with Turn Over
