  LVD Series

  LVL Series

  LFH/LLF Series

  LFJ Series

  LVLH Series


  Zigzag Leveler Feeder

  Fully Automated Leveler Feeder


1800 Width Leveler Feeder

  LVD Series
    LVD is categorized into three classes, namely 30, 40 and 60.
  These series are equipped with roll maintenance system and the latest drive method.




Options:
  1. Uncoiler Pinch Roll
  2. Double Headed Uncoiler (with Inverter)
  3. Monitor Function
  4. 11 Piece Work Rolls
  5. Zig Zag Feeding
  6. Automatic Oiling Device
  7. Uncoiler Automatic Transform (Pneumatic/Hydraulic)




Roll Opening for Cleaning Purpose

Main Specifications:

 Model LVD - 3015 / 3020 LVD - 4015 / 4020 LVD - 6020 / 6030
    1. Material Thickness (mm) 0.4 ~ 3.2
    2. Material Width (mm) 30 ~ 300 40 ~ 400 60 ~ 600
    3. Coil Weight (kgf) 1500 / 2000 1500 / 2000 2000 / 3000
    4. Pass Line Height (mm) 950 ~ 1150 1050 ~ 1250
    5. Electrical Source (V) 200 / 220
    6. Feed Length (mm) 400
    7. Coil Outer Diameter (mm) 1200
    8. Coil Inner Diameter (mm) 508
    9. No. of Work Roll 4 / 3
   10. Line Speed (m / min) 16
   11. Main Motor (kW) AC 1.5 AC 2.0
   12. Uncoiler Transform By Pneumatic / Manual By Pneumatic / Hydraulic

Straightening Capacity:

 Model LVD-3015
LVD-3020
LVD-4020
LVD-4030
LVD-6020
LVD-6030
Sheet thickness   Sheet width
0.4 300 400 600
0.5
1.2
1.6
1.8
2.0 510
2.3 390
2.6 235 300 300
2.8 200 260 255
3.2 150 200 200


 LVL Series
   Functions:
  1. Feed Master
  2. ACC/DEC Time Control
  3. Function Indicator
  4. User Friendly Control Panel
  5. Counter Setting
  6. Troubleshooting Command
  7. Release Timing Control
  8. Photoelectric Sensor
  9. Uncoiler Automatic Transform
  10. Alligator Head
Options:
  1. Uncoiler Pinch Roll
  2. Double Headed Uncoiler
  3. Monitor Function
  4. 11 Pieces Workroll
  5. Zig Zag Feeding
  6. Automatic Oiling Device



Roll Opening for Cleaning Purpose
Main Specifications:
  Model 30-200(300) 40-200(300) 60-200(300) 70-300(500)
  1. Material Thickness (mm) 0.5 ~ 4.5
  2. Material Width (mm) 50 ~ 300 50 ~ 400 60 ~ 600 60 ~ 700
  3. Coil Weight (kgf) 2000 2000(3000) 3000(5000)
  4. Coil Inner Diameter (mm) 508
  5. Coil Outer Diameter (mm) 1400
  6. No. of Work Roll 5(7)(9)(11)
  7. Feed Length (mm) 500
  8. Main Motor (kW) AC 3.5 (AC 7.5)
  9. Pass Line Height (mm) 1150 ~ 1350
 10. Uncoiler Transform By Pneumatic or Hydraulic

Straightening Capacity
Model LVL-3020
LVL-3030
LVL-4020
LVL-4030
LVL-6020
LVL-6030
LVL-7030
LVL-7050
LVL-8030
LVL-8050
LVL-100-50

Sheet thickness
  Sheet width
0.5 300 400 600 700 800 1000
1.2
1.6 780
1.8 600 560
2.0 580 500 470
2.3 500 460 380 370
2.6 400 370 300 300
2.8 360 340 260 260
3.2 300 280 260 200 200
4.0 230 230 180 180
4.5 180 180 150 150

  LFH/LLF Series


 NC Leveler Feeder - LFH/LLF is divided into four types, namely 535, 545, 555 and 565.
    These large-size straightener feeders are equipped with automated work roll adjustment for easy operation.

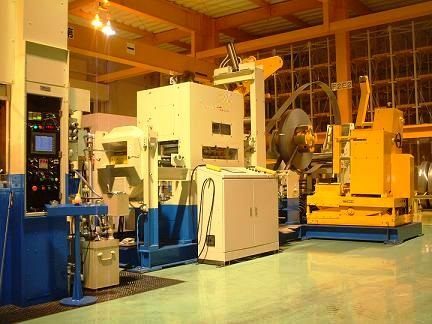

 LFH Series with single uncoiler
LFH Series with double Uncoiler  LLF Series equipped with Coil Car

Main Specifications:
  Model 735 745 755 765
   1. Material Thickness (mm) 1.2 ~ 6.0 (1.6 ~ 10.0)
   2. Material Width (mm) 100 ~ 350 100 ~ 450 100 ~ 550 100 ~ 650
   3. Coil Weight (kgf) 3000 5000
   4. Pass Line Height (mm) 1150 ~ 1350 (1250 ~ 1350)
   5. Coil Outer Diameter (mm) 1400 (1500)
   6. Coil Inner Diameter (mm) 508
   7. No. of Work Roll 5 (7) (9)
   8. Main Motor (kW) AC 5.5, AC 7.5 (AC 11)
   9. Uncoiler Transform By Hydraulic

 Straightening Capacity:
Model 735 745 755 765

Sheet thickness
  Sheet width
1.2 350


450



550

650
1.6
1.8
2.0
2.3
2.6
2.8
3.2
4.0 500 470
4.5 180 180 380 380
6.0  250 250 200 200
  More than 6mm is option.

   LFJ Series
   LFJis divided into two classes, namely 20 and 30. This upward-looping straightener feeder is equipped with
 tensile loop control system and options like coil pusher and uncoiler automatic transform.


Main Specifications:
  Model LFJ-20 LF-30
    1. Material Thickness (mm) 0.3 ~ 2.3
    2. Material Width (mm) 20 ~ 200 30 ~ 300
    3. Coil Weight (kgf) 500 1250
    4. Pass Line Height (mm) 950 ~ 1150
    5. Feed Length (mm) 300
    6. Coil Outer Diameter (mm) 1000
    7. Coil Inner Diameter (mm) 300 ~ 508 508
    8. No. of Work Roll 7
    9. Line Speed (m / min) 14
   10. Main Motor (kW) AC 1.0
   11. Uncoiler Transform Manual




 LVLH Series



  Features:
  1. Roll Opening for Cleaning Purpose
  2. Uncoiler Pinch Roll
  3. Hydraulic mandrel transform
  4. Photo-electric loop control
  5. Acceleration setting
  6. Release timing setting
  7. Touch panel with trouble-shooting
Main Specifications
 Model LVLH3020P
 1. Width (mm)  50〜300
 2. Thickness (mm)  1.2〜6.0
 3. No. of Work Roll
 4. Inner Diameter (mm)  508
 5. Outer Diameter (mm)  Max. 1400
 6. Coil Weight (kgf)  Max. 2000


  Zigzag Leveler Feeder

 Zigzag Leveler Feeder that can be improve scrap ration around 10%.   Save material and resources with
Zig Zag Leveler Feeder


With DATEC's Zig Zag Leveler Feeder which belongs to the oscillating class, you can save up to 10% of the material cost compared with other leveler feeders in the market. Also this can be programmable and this function is applicable for LVD,
LVL and LFH Serieses.



Main Specifications:
  Model 35-200ZZ 45-200(300)ZZ 55-200(300)ZZ 65-300(500)ZZ 525ZZ
    1. Material Thickness (mm) 0.5 ~ 3.2 (4.5 and 6.0) 0.6 ~ 6.0
    2. Material Width (mm) 50 ~ 350 50 ~ 450 60 ~ 550 60 ~ 650 50 ~ 250
    3. Coil Weight (kgf) 2000 2000(3000) 3000(5000) 2000
    4. Pass Line Height (mm) 1150 ~ 1350 1100 ~ 1300
    5. Feed Length (mm) 500 300
    6. Coil Outer Diameter (mm) 1400
    7. Max. Diameter for         P.Stamping (mm)
       In case of 2 rows
       In case of 3 rows
186
127
240
163
293
200
347
236
132
90
    8. Coil Inner Diameter (mm) 508
    9. No. of Work Roll 5 (7) (9)
   10. Main Motor (kW) AC 3.5 (AC 7.5) AC 3.5
   11. Uncoiler Transform Pneumatic / Hydraulic Hydraulic

Fully Automated Leveler Feeder
  Features:
  1. You can clean up work rolls easily as upper rolls are
    liftedup by electric rolls.
  2. Material flatnes is within 0.1mm by means of 19 work rolls.
  3. Following oprerations are done automatically after
    loading material to uncoiler.
     3-1. Coil pusher lift down
     3-2. Coil side guide positioning
     3-3. Leveling adjustment
     3-4. Feeding material until leveler exit side
     3-5. Setting feed ptch and release timing
  4. Data Storage: 200 kinds


 Work Sample:





Main Specifications:
Model   LFH19-35-500W LFH19-45-500W
 1. Width (mm)  Universal Joints +Side Gears
 2. Thickness (mm)   1.6〜6.0 (8.0)
 3. No. of Work Roll 19
 4. Driving Method     Max. 5000 x 2
 5. Leveling Capacity    250wー6.0t
350wー5.0t
 250wー6.0t
 450wー4.0t
 6. Coil Weight (kgf)    Max. 5000 x 2
 7. Coil Diameter (mm)  508x1500
 8. Line Speed (m/min.)  Max.14m/Minute
 9. Power Supply   200/220V, 50/60Hz, 3 Phases
